Description
BT201 12V battery tester: 100–2000 CCA range

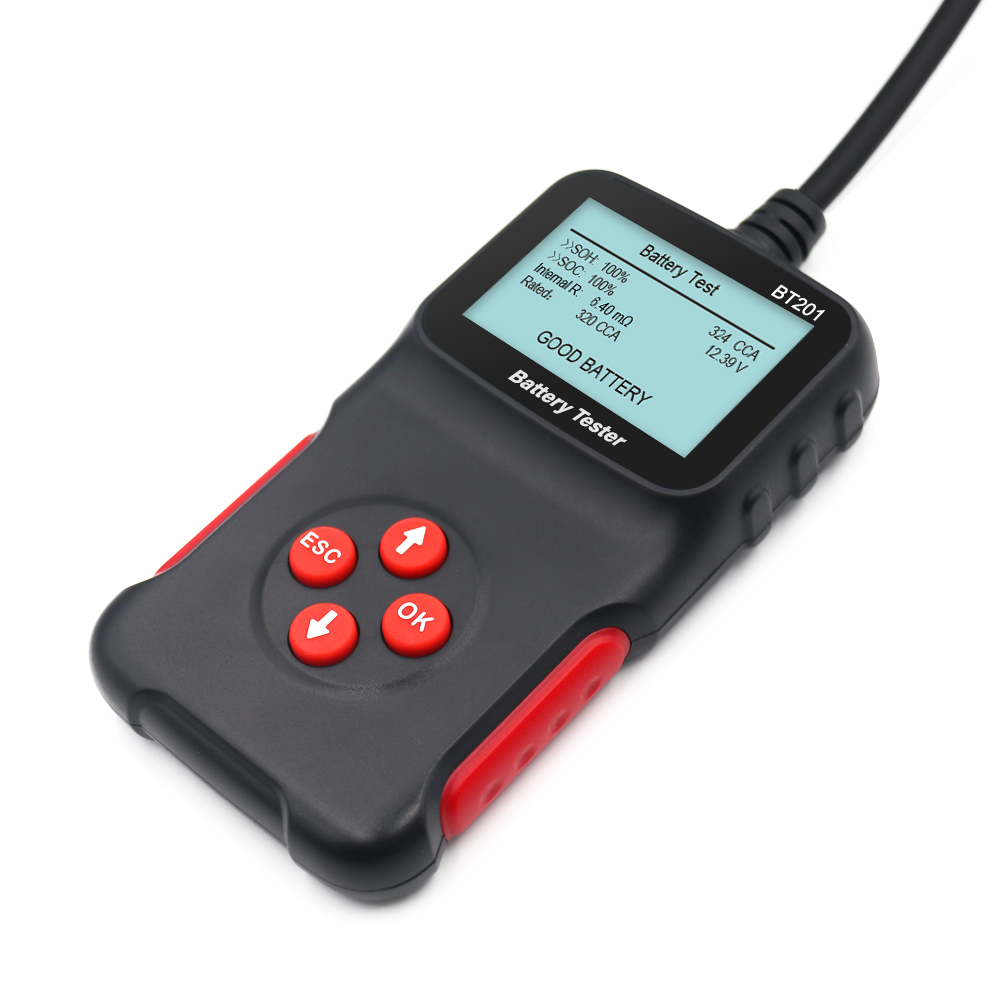

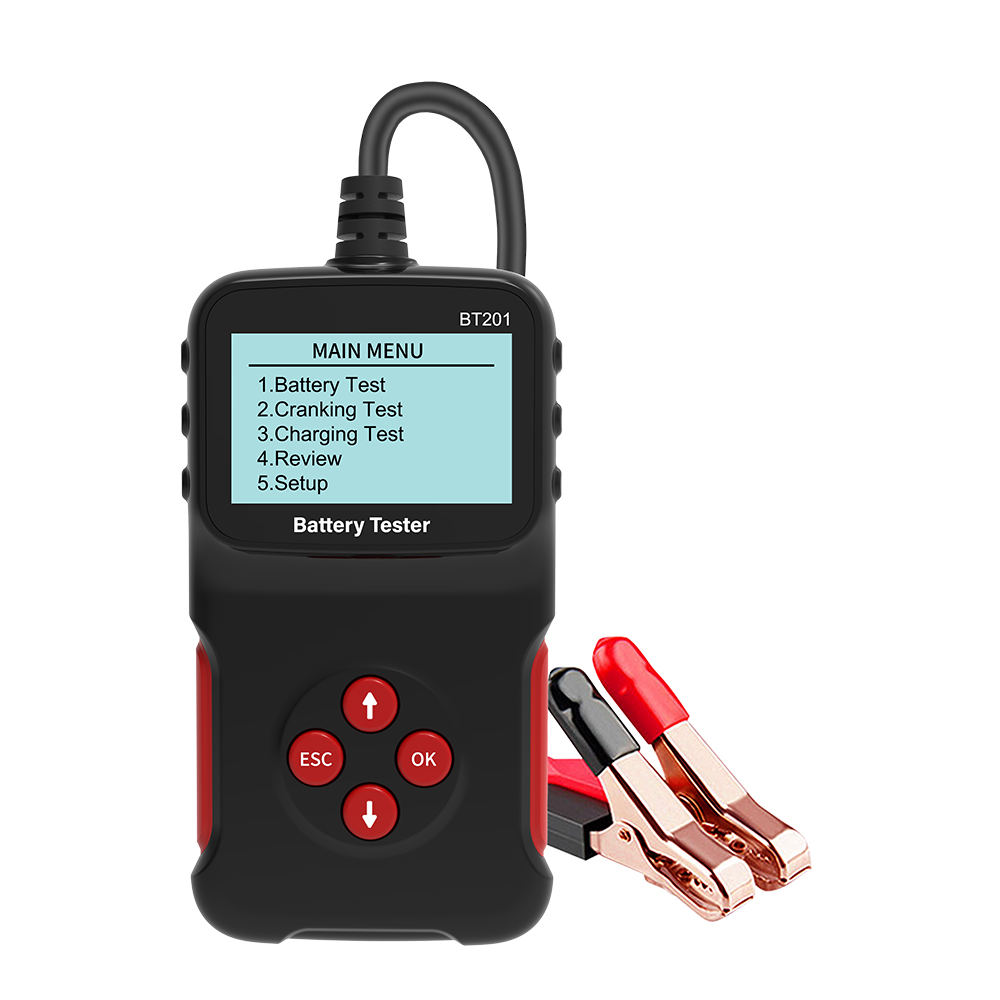

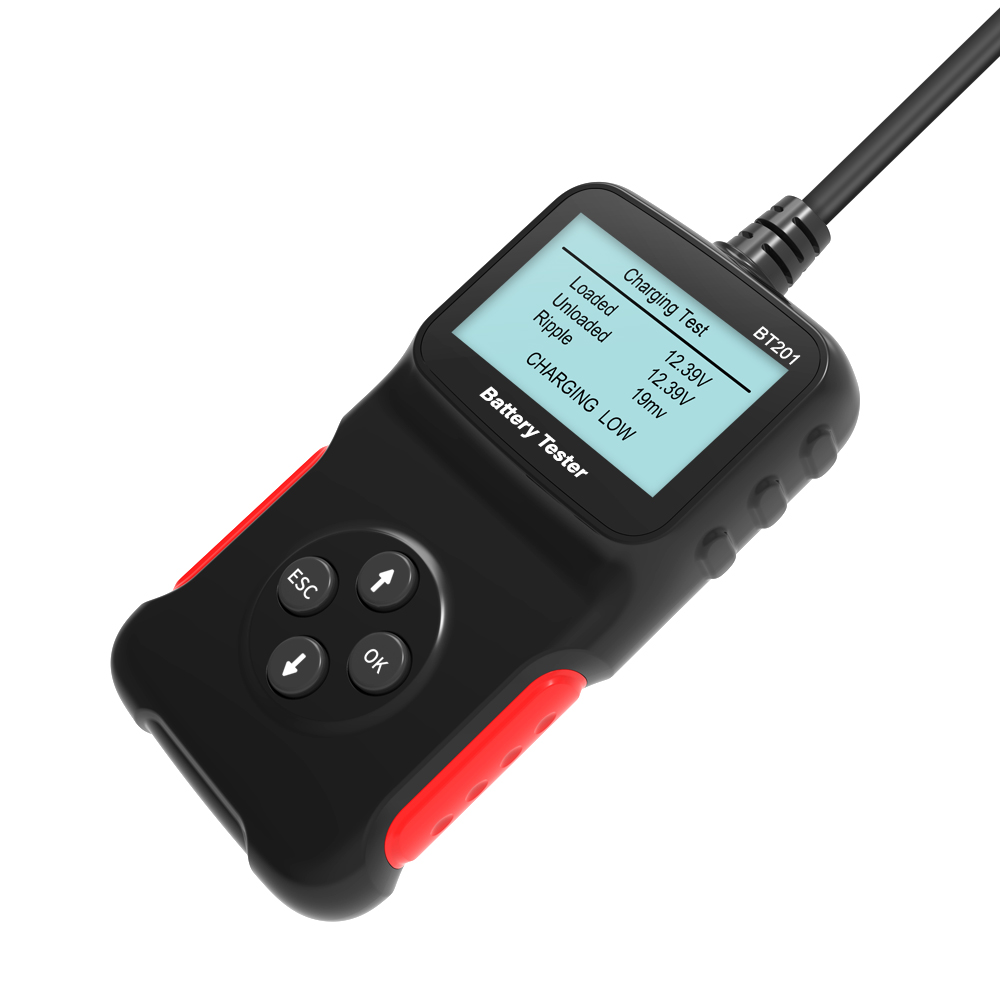

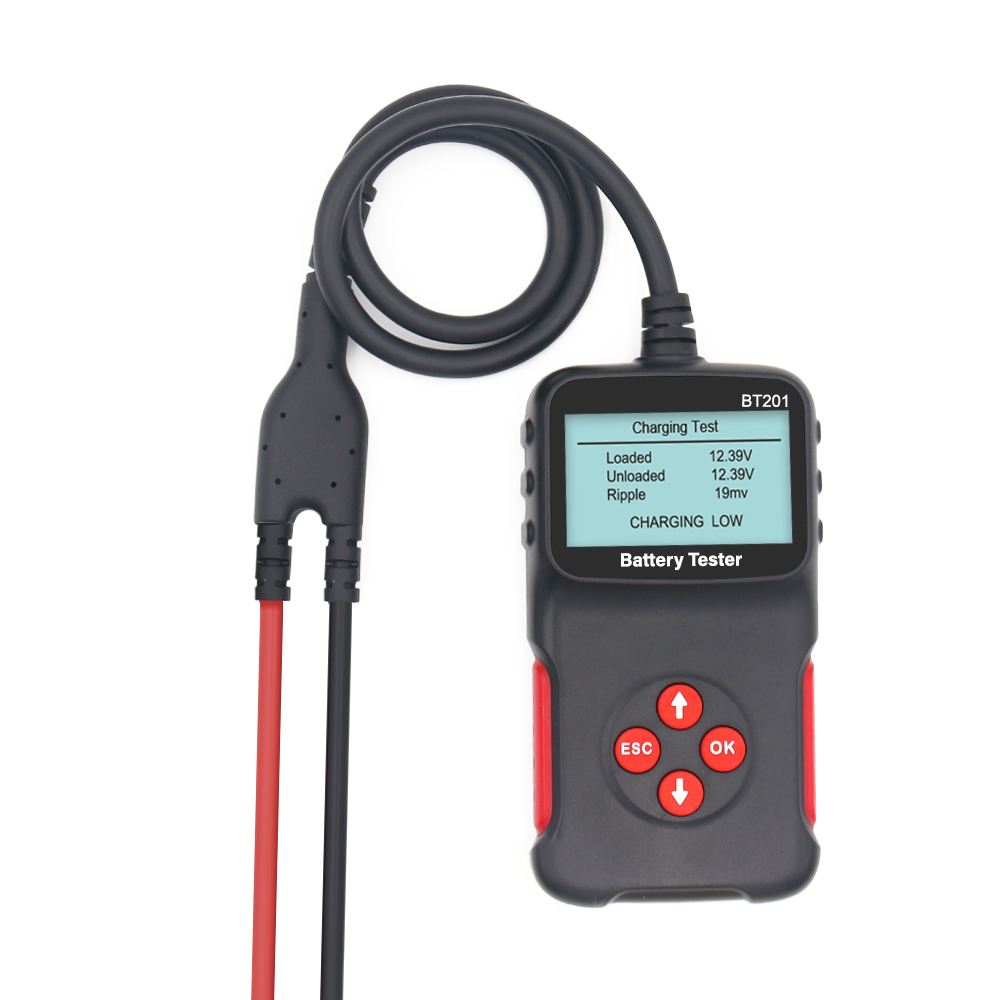

BT201 is a battery tester for supported 12V lead-acid batteries, with a supplier-listed 100–2000 CCA range. Its clamp-based workflow reports voltage, internal resistance and battery-condition estimates; it is separate from reading engine fault codes through an OBD port.
Documented functions
- Battery voltage and internal resistance
- Cold-cranking capability estimate
- Battery health and state-of-charge assessment
Technical specifications
| Battery application | 12V lead-acid |
|---|---|
| Test range | 100–2000 CCA |
| Battery types | Flooded, AGM flat-plate, AGM spiral and GEL |
| Dimensions | 128.5 × 72.5 × 22.2 mm |
| Weight | 226 g (device) |
What to check before buying
Match the battery chemistry and rating standard to the tester settings and the battery label. State-of-health and cold-cranking results are estimates from a test, not a guarantee of remaining service life. The supplied sheet lists flooded, AGM flat-plate, AGM spiral and GEL batteries; lithium batteries and high-voltage EV traction batteries are not confirmed applications.
Ask about BT201 with your vehicle make, model, year, engine and target system, or battery type and rating for a battery tester.
Compare your options
BT310 materials list 12V and 24V lead-acid applications, starting and charging tests, and cloud printing. Confirm which tests you need. View BT310.
Vehicle compatibility checklist · Compare scanner prices · Shipping · Returns and warranty
Sources and review scope
Reviewed 14 October 2026 by SKYVNO. Supplied BT201 English parameter sheet 02; product gallery. These are documented supplier claims, not independent hands-on test results. Confirm the supplied hardware and software revision for your intended use.
